Automatic FFP2 Cup Mask Making Machine

  • Model:KS-C95P+V5
  • Brand:KINGSING
  • Capacity:10~15pcs/min
  • Voltage:220V/380V 50Hz
  • Price List:Download

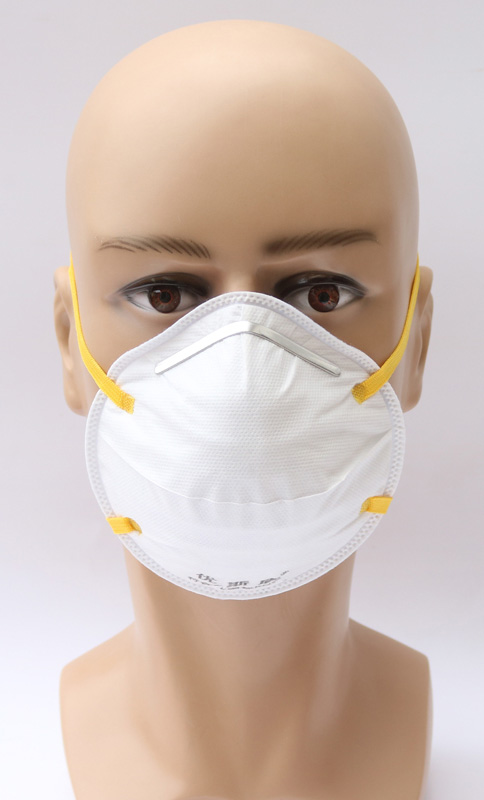

This machine can automatically complete the production of FFP1/FFP2 cup-shaped masks. It consists of three parts: a non-woven fabric and melt blown fabric welding forming machine, a needle-punched cotton hot press forming machine, and a post-processing assembly line.

Non-woven fabrics and meltblown fabrics are welded separately, needle-punched cotton is formed by hot pressing, and then these materials are combined together for edge sealing and cutting. This process can well protect the filtration performance of meltblown fabrics and control its breathing resistance.

The fixing method of the elastic band can be selected from nailing and welding. The cup shape of the mask can be customized according to customer requirements.

KINGSING

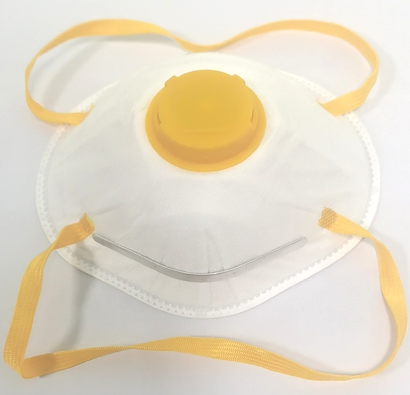

The FFP2 cup mask making machine has built-in automatic nose foam attaching function and pad printing function, and can be equipped with valve hole punching and breathing valve feeding and welding functions.

KINGSINGKINGSINGKINGSING
Head-strap: ultrasonic weldingHead-strap: staple fixingInside Nose Foam

Work Flow:

KINGSING

Speed: 10~15pcs/min

Mask Type: FFP1/FFP2 Cup Mask

Nose Foam Attaching Module: Have

Pad Printing Module: Have

Breathing Valve Welding Module: Optional

Head-strap Fixing Method: Staple or Welding for Option

Cup Shape: Can Be Customized

Motor Type: Servo Motors

Control System: PLC + Touch Screen

Power Rating: 20KW

Power Supply: 220V/50Hz + 380V/50Hz

Air Source: 0.6~0.8Mpa (200L/min)

Net. Weight: 5000Kg

KINGSING

Material Size List:

Material NameMax. Roll ODWidthSpecification
Necessary
Non-woven Fabric600mm220mm
25~50gsmYes
Melt Blown Fabric600mm220mm25~50gsmYes
Activated Carbon600mm220mm180~200gsmNo
Needle Punched Cotton600mm240mm180~220gsmYes
