Head-strap Style N95 Foldable Mask Making Machine

  • Model:KS-C95R-H
  • Brand:KINGSING
  • Capacity:50~80pcs/min
  • Voltage:220V/380V
  • Price List:Download

This is the latest head-strap style N95 folding mask production line, head-strap masks are more comfortable than earband masks for long-term wear. The machine can also be equipped with the following modules: valve welding module, nose foam attaching module, inkjet printing module.

This machine is driven by high-speed servo motors, and the production speed can reach 50~80pcs/min. (When the breathing valve welding  function is enabled, the speed is 25~30pcs/min)


The head-strap style N95 foldable mask making machine supports Max. 6 rolls materials, face mask size and welding pattern can be customized according to requirements.

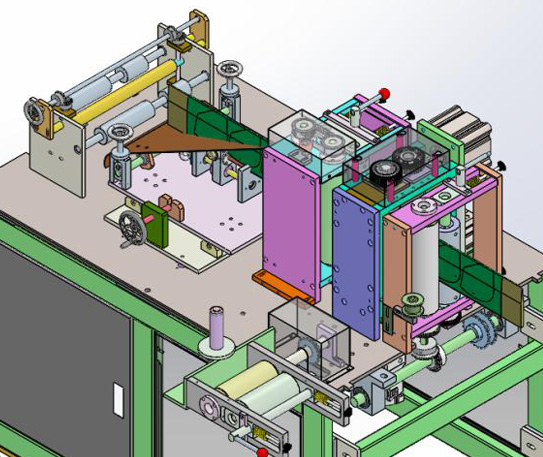

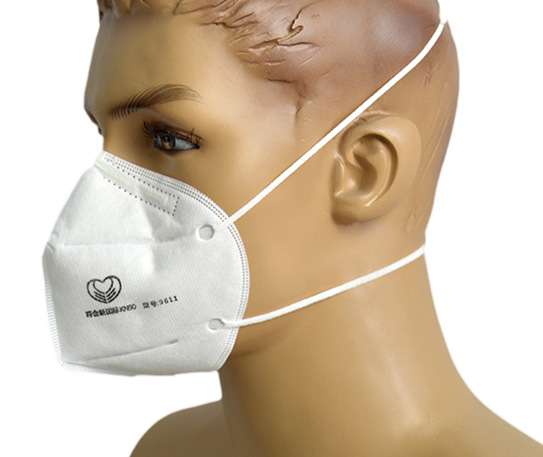

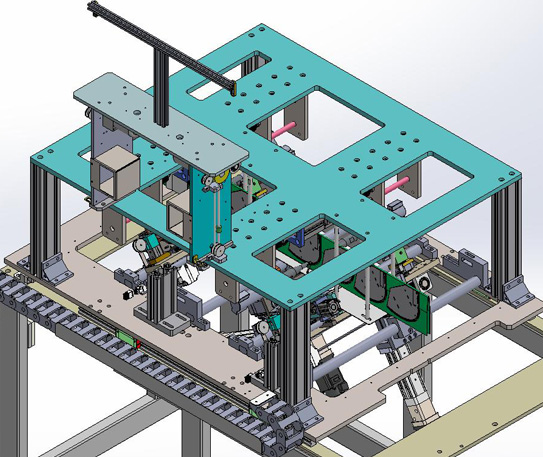

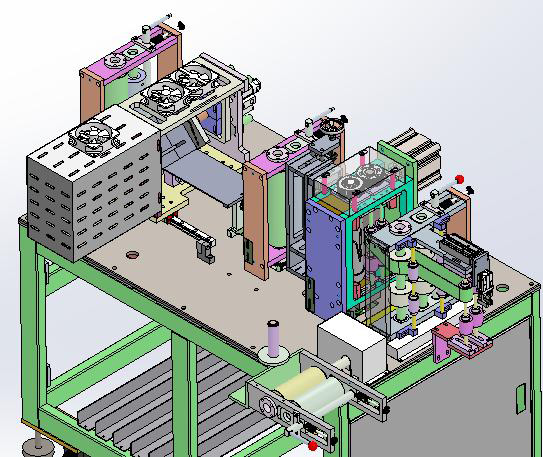

Fabric FoldingHead-strap WeldingEdge Sealing & CuttingHead-strap N95 Mask
Download: (1)

Speed: 50~80pcs/min

Mask Type: N95/FFP2 foldable mask

Wearing Method: head-strap

Material Layers: Max. 6 layers

Valve Welding Function: for option

Nose Foam Attaching Function: for option

Printing Module: inkjet printer and pad printer for option

Power Supply: 220V/50Hz

Power Rating: 14KW

Air Source: 0.6~0.8Mpa

Net. Weight: 2300Kg

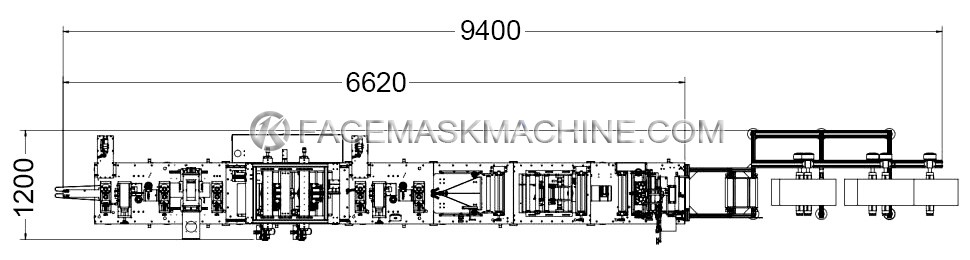

Dimension: 11000x1200x1800mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
