This is the latest head-strap style N95 folding mask production line, head-strap masks are more comfortable than earband masks for long-term wear. The machine can also be equipped with the following modules: valve welding module, nose foam attaching module, inkjet printing module.
This machine is driven by high-speed servo motors, and the production speed can reach 50~80pcs/min. (When the breathing valve welding function is enabled, the speed is 25~30pcs/min)
The head-strap style N95 foldable mask making machine supports Max. 6 rolls materials, face mask size and welding pattern can be customized according to requirements.
 |  |  |  |
| Fabric Folding | Head-strap Welding | Edge Sealing & Cutting | Head-strap N95 Mask |
Speed: 50~80pcs/min

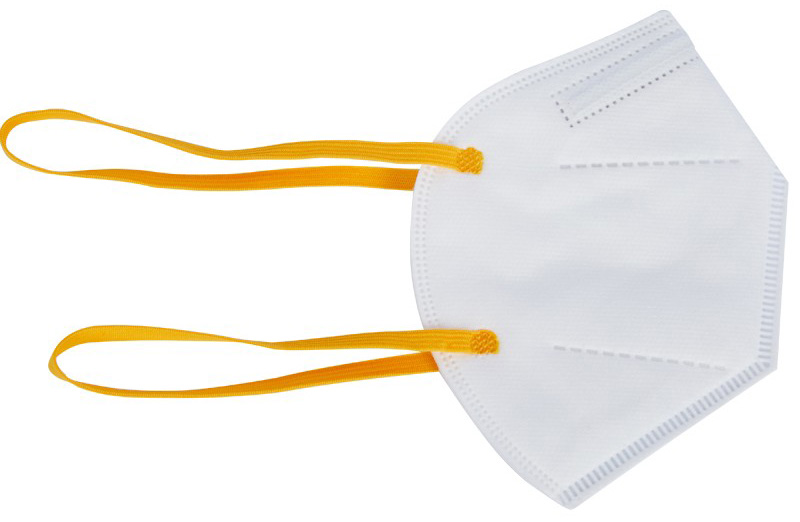

Mask Type: N95/FFP2 foldable mask
Wearing Method: head-strap
Material Layers: Max. 6 layers
Valve Welding Function: for option
Nose Foam Attaching Function: for option
Printing Module: inkjet printer and pad printer for option
Power Supply: 220V/50Hz
Power Rating: 14KW
Air Source: 0.6~0.8Mpa
Net. Weight: 2300Kg
Dimension: 11000x1200x1800mm
